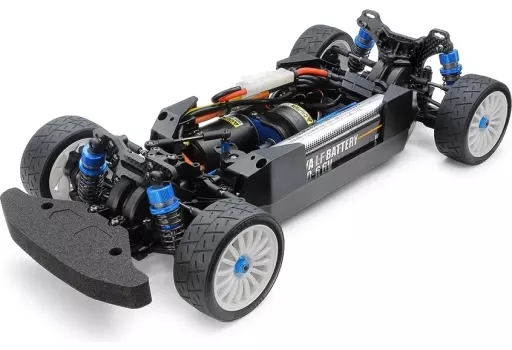

1 / 10XV - 02 RS PRO Chassis Kit "Electric RC Car Series No. 726" [58726]

Product description ※Please note that product information is not in full comprehensive meaning because of the machine translation.

Product Description ■
[Shaft drive 4 wd chassis with emphasis on on-road driving]
[Shaft drive 4 wd chassis with emphasis on on-road driving]
[Shaft drive 4 wd chassis with emphasis on on-road driving]

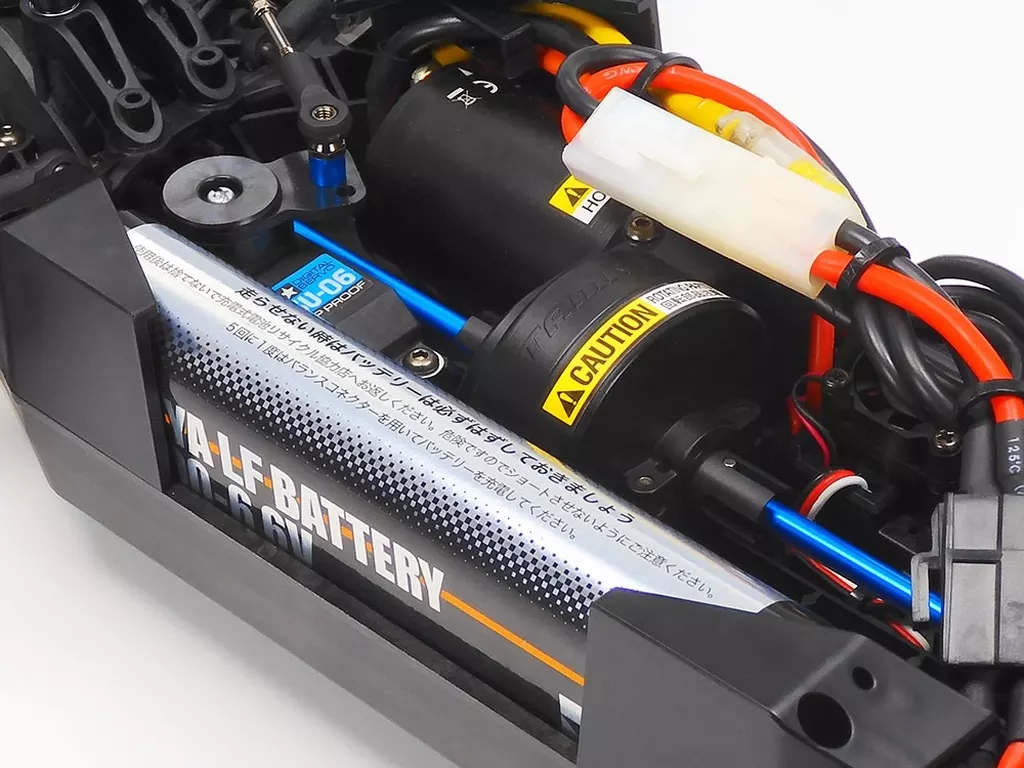

The motor is mounted on the front midship, and power is transmitted from the spur gear in the center of the car body through the long front and rear propeller shafts.
It is a 4 wd touring car chassis with settings mainly for driving on paved roads.
It is equipped with 39T gear differentials on the front and rear sides and a set of 40T gears.
You can change the drive distribution in the front and rear sides by changing the combination.

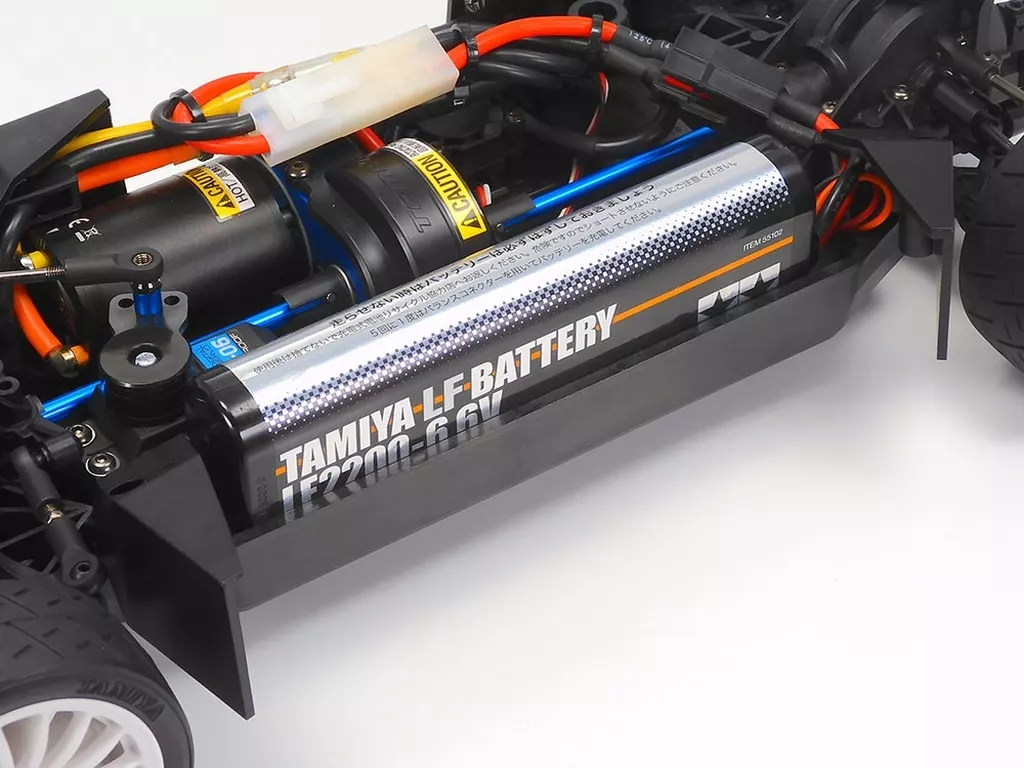

In addition, heavy items are placed in the center and the chassis width is narrow.
The ロワデッキ uses high-rigidity carbon-reinforced plastic.

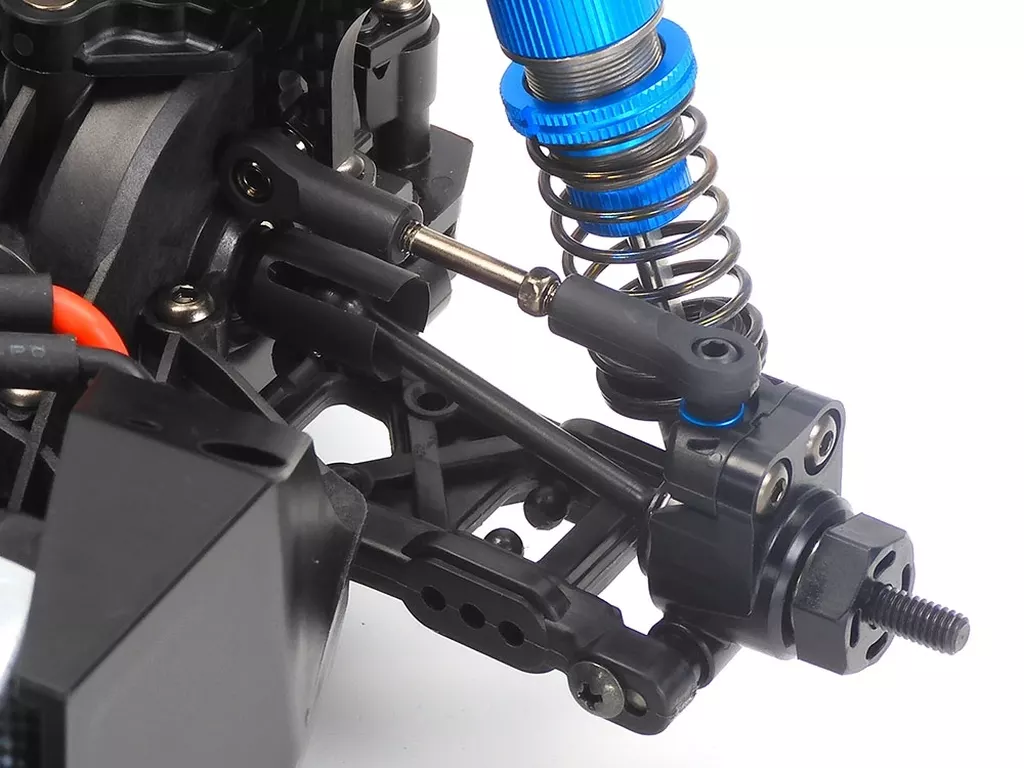

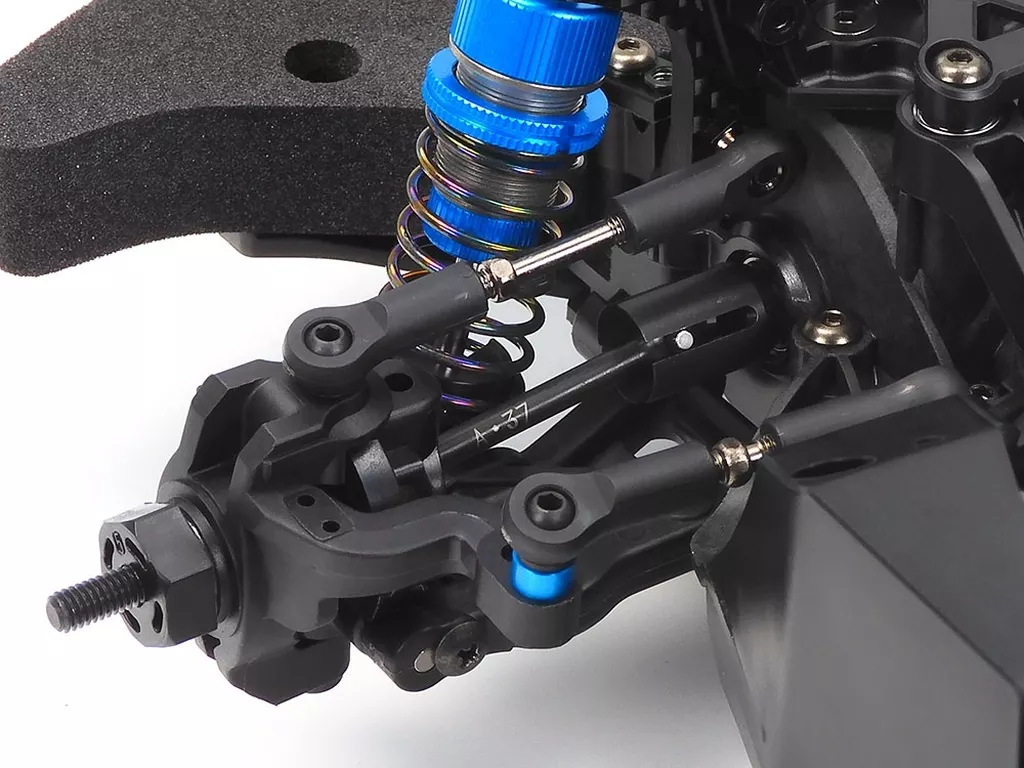

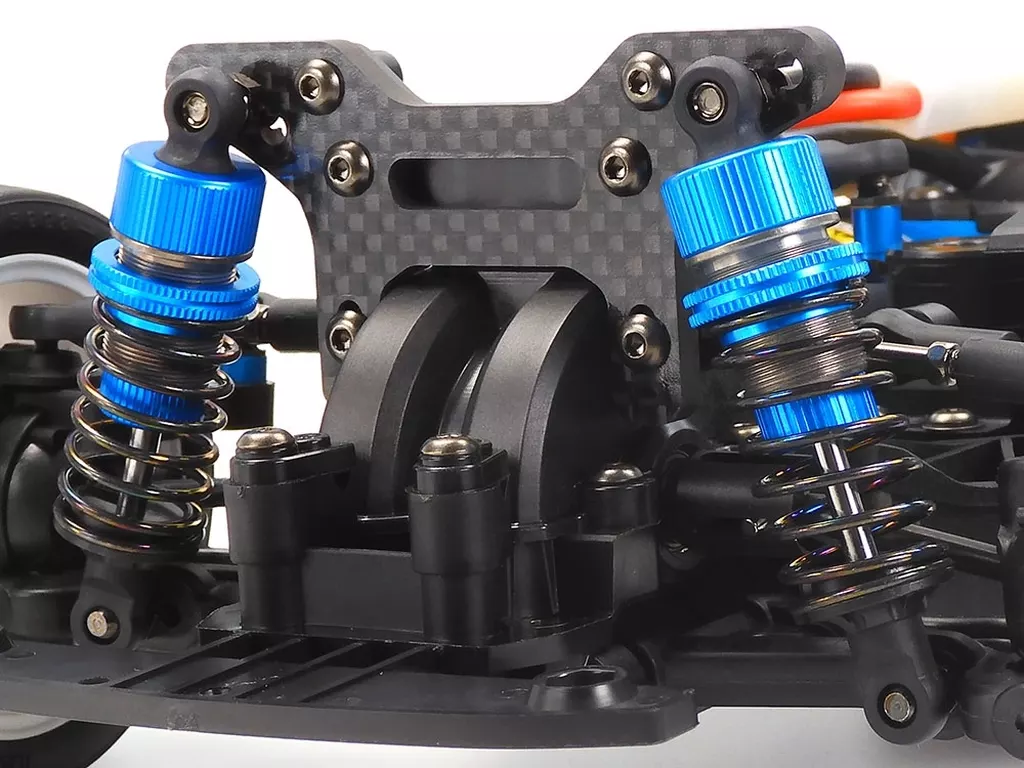

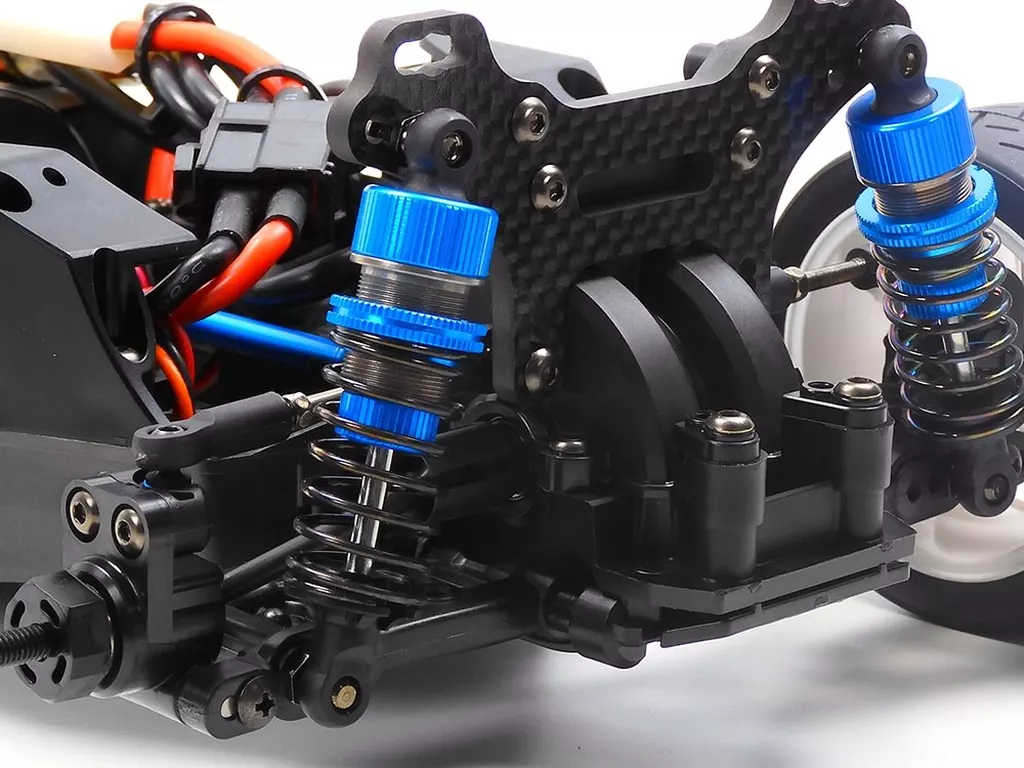

Double wishbone 4-wheel independent suspension is equipped with aluminum oil damper for XV-02RS.
[Main parts]
: Full bearing specifications, front and rear aluminum propeller shafts, front and rear oil-filled gear differentials (a set of 2 pieces of 39T and 1 piece of 40T), front and rear universal drive shafts
: front and rear aluminum oil dampers (blue cap touring car size), front and rear aluminum oil dampers (blue cap touring car size), front and rear wheels are equipped with aluminum oil dampers for XV - 3.5 rs.
[Basic Specifications]

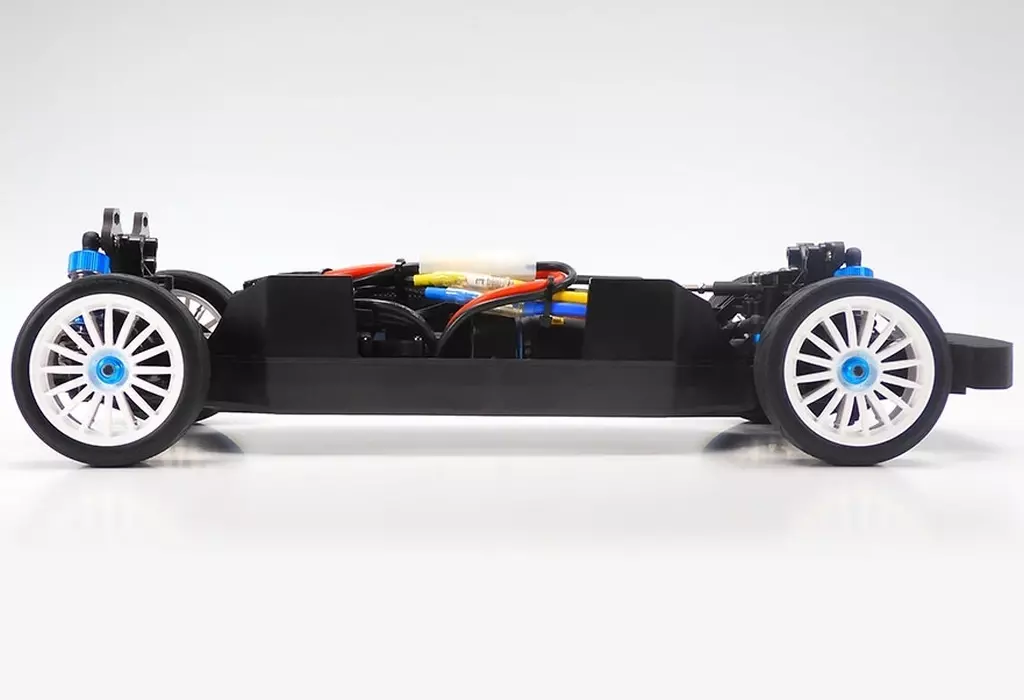

Chassis length approx. 368 mm (not including body)
Chassis width approx. 180 mm
Wheelbase 257 mm

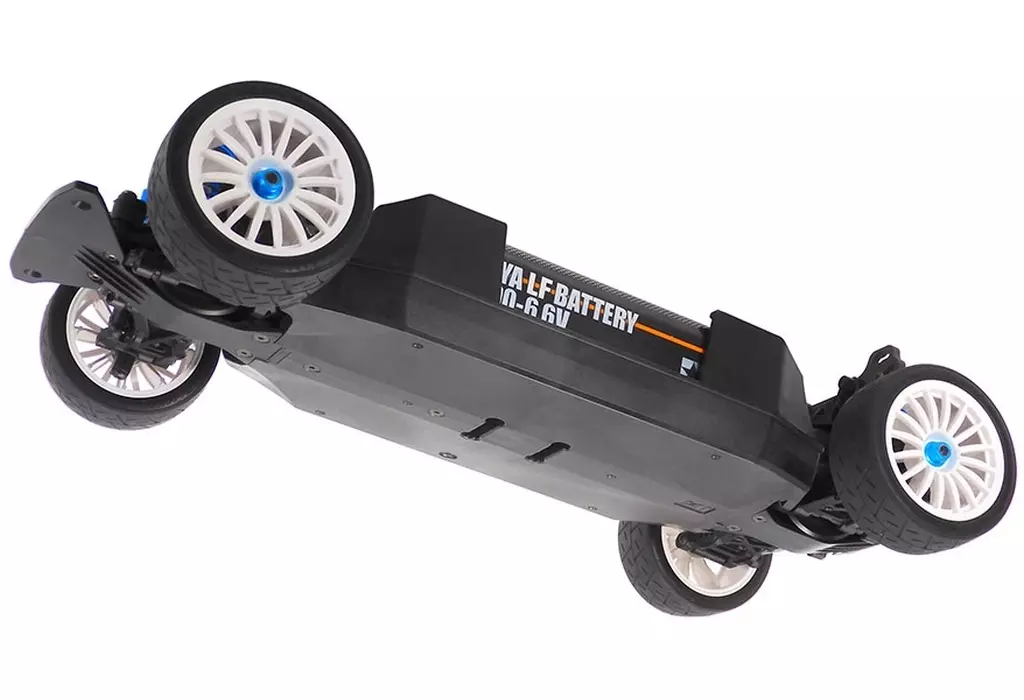

Frame = carbon-reinforced plastic bathtub type
Drive system = front midship motor shaft drive 4 wd
Differential gear = front and rear oil-filled gear differentials

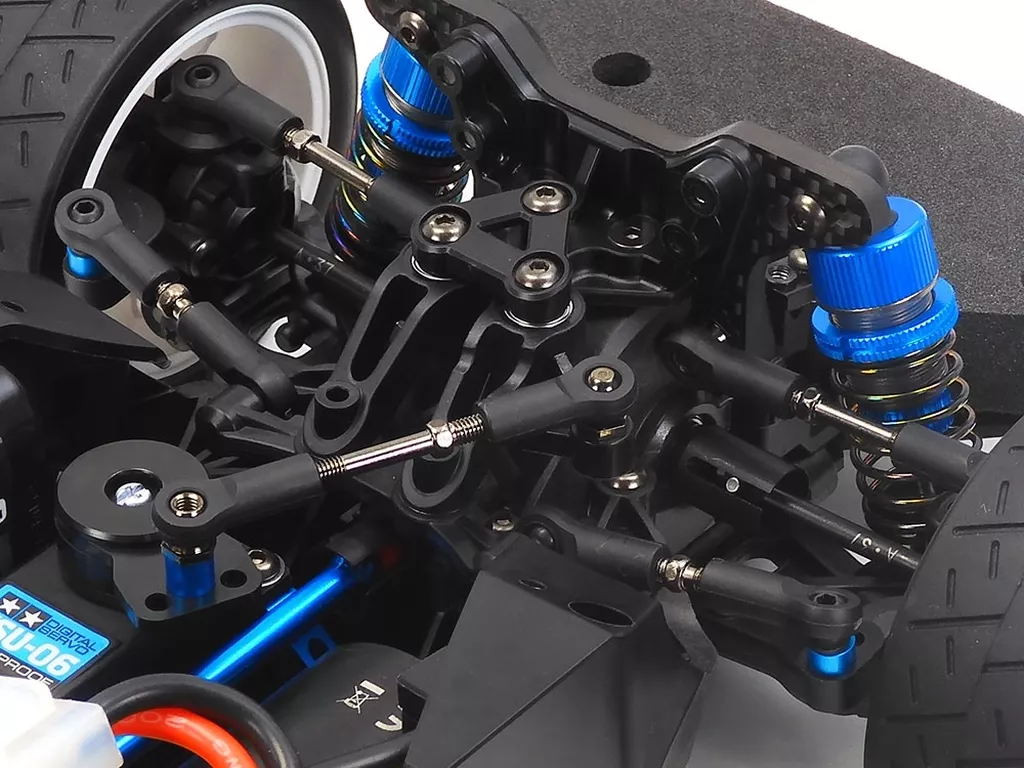

Steering = 3-split tie rod type
Suspension = 4-wheel double wishbone
damper = aluminum cylinder oil damper (blue cap specifications, touring car size)
[Basic Specifications]
Front midship motor shaft drive 4 wd
Differential gear = front and rear oil-filled gear differentials
Steering = 3-split tie rod type
Suspension = 4-wheel double wishbone
damper = aluminum cylinder oil damper (blue cap specifications, touring car size)
Gear ratio = 7.00 : 1 when using the 26T pinion included in the kit (14 gear ratios from 10.71 : 1 to 6.28 : 1 can be selected in combination with the pinion that is sold separately)
Body
540 type motor
RC mechanism : 2-channel propos set (transmitter, receiver, ESC, low-profile servo recommended)
Battery 368 ロワデッキ
